Thank you for using this build environment which enables you to create and deploy iOS apps from Windows. I hope you enjoy using it as much as I enjoyed creating it.
I know it's boring, but still, please take five minutes of your time to read this document!
In the license that comes with the iOS SDK, Apple Inc. states that the iOS SDK shall only be deployed on Apple-branded computers. So, for the rest of this document, I will assume that your Windows computer is an Apple-branded computer running Windows through Boot Camp. I do not condone the use of this program outside this scope, and cannot be held responsible for any misuse you make of it.
The build environnement comprises:
.xcassets directoriesAs well as a handful of examples, including source code and build scripts, compilable out of the box.
In order to use this builder, you need to copy some files from the Mac side to the Windows side of your computer. Just follow these directions step by step.
Login onto Windows and plug a FAT-formatted USB key (not NTFS! macOS can't write to NTFS keys) with at least 50 Mbytes free into your computer.
Open the SDK migration assistant shortcut from your Start menu (it's in All Programs > iOS Build Environment)
Drag both these files to your USB key and reboot into macOS.
Login onto macOS. NOTE: if you can't use your Mac for this, you may ask a friend with a working Mac to help.
Make sure that Xcode is installed and up to date (you can install or update it for free from the Mac App Store).
If your Mac is too old for the latest Xcode, here's a hint: download it anyway from https://xcodereleases.com, extract it and put the resulting Xcode.app in your Applications directory (backup your previous Xcode first). The new Xcode.app will have a forbidden icon on it (as it's incompatible with your Mac), but it won't prevent the builder's migration tools to find it and make use of it. Once the SDK migration is done, you can remove the new Xcode and put your previous, working one back in place.
Open your USB key and double-click the item called Migration assistant (step 1, Mac).command.
Let it do its job, and when it tells you so, reboot into Windows.
(You will notice that a SDK.zip, and possibly a Keychain.zip file too, will have been created on your USB key. They contain the files we need.)
Login onto Windows.

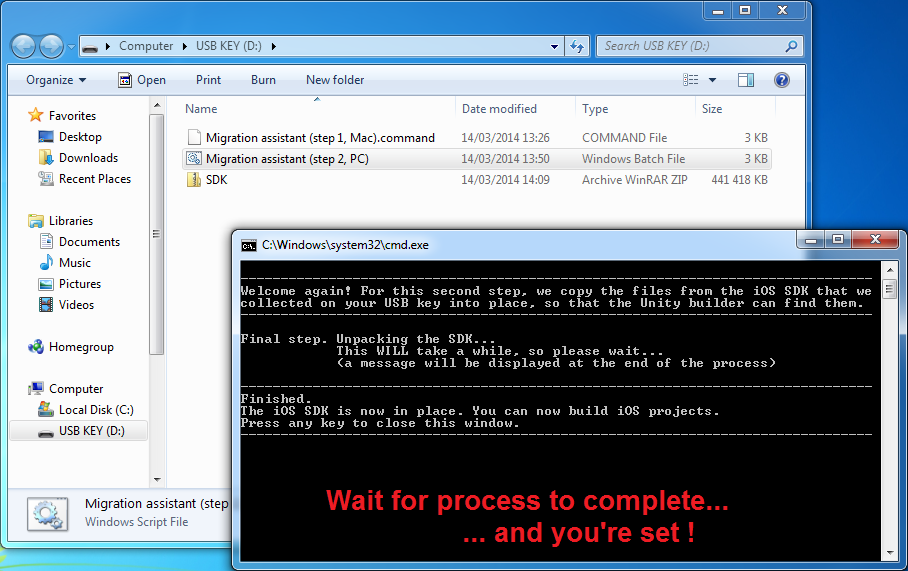

Open your USB key and double-click the item called Migration assistant (step 2, PC).
The SDK unpacks. Wait for it to finish.
Now you can build iOS projects. But in order to deploy them to your (non-jailbroken) device, you'll also need to sign them with your digital signing identity; so read on.
On Windows, open the Keychain Tool shortcut from your Start menu (it's in All Programs > iOS Build Environment).
If your Mac was previously used to build iOS apps, the migration assistant will have found your existing signing identity and you should see that appear in the Keychain Tool. That is to say, you should see things called certificates named iPhone Developer: <Your Name> and/or iPhone Distribution: <Your Name>, along with at least one private key and probably some provisioning profiles.
On the other hand, if you see nothing in the listbox like on this image, then it means no existing signing identity was imported from your Mac, and you need to create one from scratch.
In which case please see 12: About digital signing identities case c) "You don't have any signing identity yet".
A signing identity, in a nutshell, is the combination of 3 things: a certificate that attests of your identity, the private key (and its protecting passphrase) out of which this certificate was created, and a provisioning profile that tells which iOS device(s) are allowed to install the app that carries it.
Select the provisioning profile to use by default. This will auto-select the certificate it contains (if your profile contains multiple certificates, pick one of them), and the private key that was used to create it. Enter that private key's passphrase. When everything matches, the lock turns green. This will be your default signing identity.
Note that for a generic identity, you should select a generic, development provisioning profile, i.e. one that's not specific to a particular app. Later, when you build your apps for release, you will select for each of them a distribution certificate and a specific provisioning profile.
Voilą. Your build environment is ready!
Now here are the instructions to build your first project.
Start the "Project Creation Wizard for Visual Studio" from your Start menu (it's located in the "iOS Build Environment" programs group, under "All programs"). Enter the name for the project you wish to create, select the directory where it should be created, specify the project type and click Create. The necessary files for a new iOS project are created in a new directory with a .vcproj file to regroup them, and Visual Studio opens. Depending on your Visual Studio version, you may need to follow a project conversion wizard - this process should run without error.
You may now browse your project files within the IDE and review them. When you're ready, hit F7 or click the Build toolbar button to compile your project. This action calls your project's build script, which is the make.cmd file that comes with it. The iOS builder output should scroll in the usual Visual Studio compiler output window.
Depending on the project type you selected, the build will produce an installable app, or something else (for example a library). Refer to the builder output and the contents of the make.cmd file to know what to do next (for example, to install an app after each build you just have to switch a setting in that file).
In this case, just call make.cmd from the directory where your project's files resides. If you don't use Visual Studio, you should also delete the Visual Studio project file (.vcproj / .vcxproj), so that the build script doesn't rely on it to figure out which files to compile. The rule is that if no Visual Studio file is present, all the files with a compilable extension in the project directory and its subdirectories (.c, .cc, .cpp, .cxx, .m, .mm, .mx, .mxx and .a) are compiled as part of the project. So, if you intend to use the build environment from the command-line and don't want a particular file to be compiled, just change its extension.
The build system relies on the build.cmd master script that is located at the root of the build environment. If you intend to create an automated build chain, you should read and study this file (and especially its command-line arguments: invoke it with build /? to display them). This build script has been carefully crafted to make toolchain integration as easy as possible.
Create your iOS project within Unity on Windows (select File - Build Settings... or Ctrl+Shift+B, then select iOS, and hit Build.)
Unity will prepare a directory containing a project to be compiled with Xcode.
Start the "Project Builder for Unity" from your Start menu (it's located in the "iOS Project Builder for Unity" programs group in the Start menu, under "All programs").
Pickup the location of the Xcode project created by Unity using the Browse button.
Check that your signing identity is correct (see 12.) and that the provisioning profile is suitable for your app (see 13.), review the build options, then hit Build.
Grab a cookie while your project is being built.
After a successful compilation, your apps can be found in the 'Packages' subdirectory of your project.
These packages are ready to be deployed on your iOS device (iPhone, iPod or iPad).
If you opted so, your app should also be available for OTA (over the air) installation to your device. Simply follow the on-screen instructions.
OTA deployment users, please note that:
IMPORTANT: iOS code signature requires product activation. To import and use your digital signing identity to sign the app, use the Keychain tool (see 12.) As long as you haven't set up a signing identity, only a pseudo-signature can be performed. Pseudo-signed apps can only be deployed on jailbroken devices, while fully signed apps can be deployed on any device, jailbroken or not. See 12 - About digital signing identities for a brief howto on how to use a digital signing identity from the iOS Developer Program.
Except for projects created by Unity whose settings belong inside the Unity editor, all your other projects' build settings (preprocessor definitions, compiler and linker options, targeted iOS version, signing identity, etc) are in the project's make.cmd file, which is a text-editable file that you can open in your IDE. If you use Visual Studio, your project's make.cmd is already included in the Solution Explorer; simply click on it to open and edit its contents.
Following the UNIX C rule, all the compiler and linker options are set in the IOS_CPPFLAGS, IOS_CFLAGS, IOS_CXXFLAGS and IOS_LDFLAGS variables, respectively. The contents of these variables are treated as command-line options (a.k.a. "flags") when invoking the compiler and the linker to build your project. If you need to find out the name or syntax of a particular compiler or linker option, please refer to the following online documentation:
Tip: use your browser's "search in page" and specify a keyword to quickly locate the option you need.
In order to produce signed iOS apps, that can be deployed to stock, non-jailbroken devices, an activation is required to unlock the code signer.
To activate the product, open either the Keychain tool, the App Store Connect upload tool or the Project Builder for Unity and click the button labeled Unlock!.
 |
The software is now unlocked. You can now produce signed iOS apps and deploy them to non-jailbroken devices :-) |
Your device doesn't need to be jailbroken. To install regular iOS apps on your device, you must ensure:
If you would like your app to be automatically deployed after each build, simply set the value of the DEPLOY variable to yes in your app's make.cmd. Doing so will ensure your app will be immediately served on a local webserver, enabling your iDevice to install it immediately over Wifi.
You can also deploy your apps at any time by using the command-line uploader called ideployota. Type "%IOSBUILDENV_PATH%\ideployota.exe" on a Windows command prompt to learn about the possible options. An example to upload an app file called MyCoolApp.ipa using a QR code would be: "%IOSBUILDENV_PATH%\ideployota.exe" MyCoolApp.ipa qrcode
Please note that:
Open iTunes. Locate your device in the left-hand panel (connect it via USB if necessary). Click the little arrow next to it so as to develop its contents. Now drag-and-drop the created app package (.ipa file) onto any of these categories in iTunes. Sync, and your app icon appears.
These instructions are known to work for iTunes 12.7 (see this thread on StackOverflow). It has been reported to me that in some cases you need to select and copy (CTRL+C) the .ipa file then paste it (CTRL+V) on the device's Music tab in iTunes. You might need to experiment a bit if you use another version (please don't ask me: truly, I don't know how other iTunes versions are meant to work.)
You can do so in 3 different ways, but first your device must be jailbroken (see 5.)
root). Your app icon appears.su -c /usr/bin/uicache mobile to refresh the SpringBoard icons. Your app icon appears.Jailbreaking your device is the process of lifting some security barriers that Apple put on it, that prevent it to run unsigned code (which is literally code for which we can't know the author. You understand why it's an important security restriction). Although Apple would prefer you to abstain, lifting this restriction by "jailbreaking" is authorized, safe, and reversible.
To jailbreak your device, first check its model and iOS version in Preferences > General > Informations. Once you know these, head up to http://jailbreak-me.info and let the website select the right jailbreak program for you. Make sure you have a good ad blocker enabled so as not to download anything else than the jailbreak program (I am not affiliated with this website nor with the ad campaigns it runs - you have been warned). Get the jailbreak program that's right for your device (they're free), run it and follow the instructions.
You can read more on iOS jailbreaking here: http://en.wikipedia.org/wiki/IOS_jailbreaking

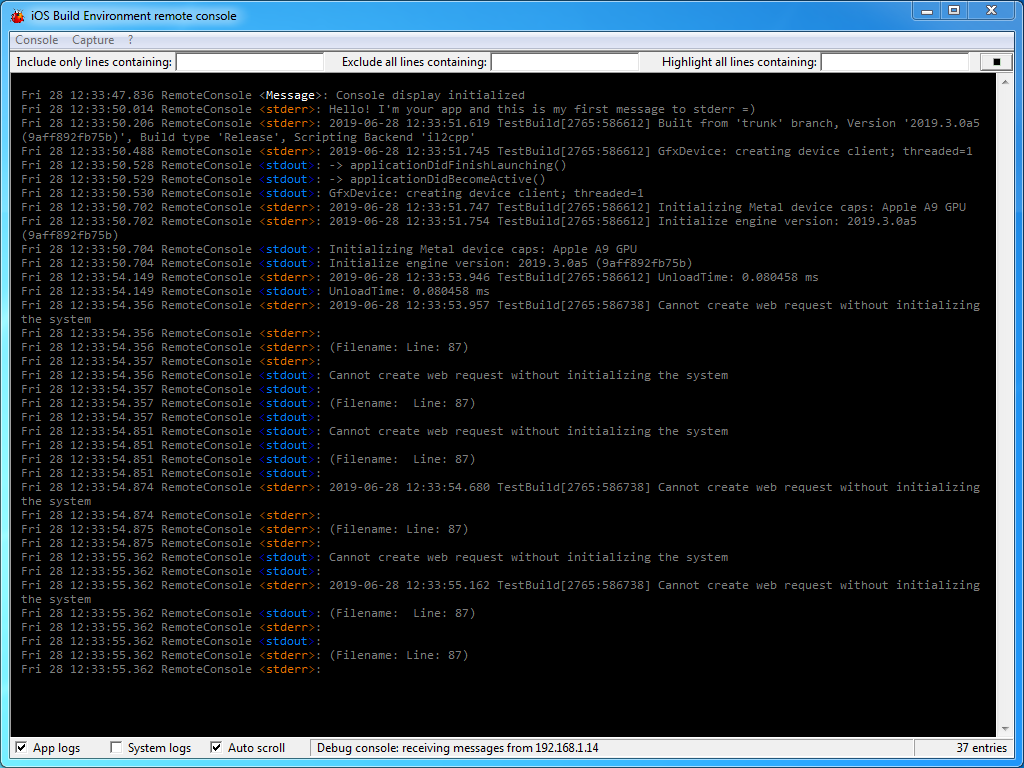

Open the remote debug console by clicking on the link in the builder window, or from your Windows start menu: All Programs > iOS Build Environment > Remote debug console.
This cute piece of witchcraft allows any iOS app to send all that it would normally write to the standard output and the standard error streams stdout and stderr, to a window on your PC. That is to say, everything that is logged in your app using NSLog() macros, with printf(), fprintf(stderr, ...) or with cout << ... and cerr << ... will be caught, even stack dumps when it crashes, sent over the network to display before your eyes, on your computer, while your app is running on your device. And this works even for release builds.
It catches the iOS system logs. If your device is plugged to your computer with a USB cable and if you have iTunes installed, you can catch the syslogs in glorious ANSI colors. This is invaluable to find out what happens when your app refuses to launch (for example, because of an invalid entitlement). To opt for it, tick the "System logs" checkbox in the debug console's bottom status bar. Beware: iOS is a very chatty system.
Data filtering. Say you've enabled all checkboxes and are now receiving encyclopediae of data flooding the console window so fast that you can't read anything. Halp. You may filter all this garbage to either exclude, or allow, or highlight a character string. No less valuable.
When you need a break, Stop and resume logging by clicking the "Stop / Record" button (top right of the console window).
To enable debug cuteness, make sure that the REMOTELOG_IP variable in your project's make.cmd file is defined. This variable can have two values: either a dotted IP address that should be the address of your computer (such as 192.168.1.10), or just "myself" (in which case, the builder will substitute your own IP address) [Unity users: simply tick the "Enable remote debug console" checkbox in the builder window and specify your address there]. The app will send its data over TCP ports 5001 and 5002, so you should also make sure that the remote debug console window is open on your PC and that no firewall or other "Internet Security" stupidware gets in the way (at least for these protocol/port pairs).
NOTE: each time you toggle this checkbox, the project must be rebuilt from source in order to embed or disembed some additional code. If you get linker errors such as: duplicate symbol _main or ld: entry point (_main) undefined, then it means you toggled the remote debug console on/off without rebuilding. Simply tick the "Rebuild all files (once)" checkbox to fix it.
Running an app under debugger control enables you to stop your app's execution at certain points, display the contents of variables, display the call stack, and step line after line into your program at critical places. If you want to run your app under debugger control, you may do so with the GNU Debugger (GDB) over SSH.
Direct debugging on the device is only possible if your device is jailbroken (see 5.)
First, install the debugger package provided with iOS Build Environment on your device. The package file is located under the Debugger directory. Then, edit your project's make.cmd so as to make sure it builds a debug database: the IOS_CFLAGS line should have the -O0 (no assembler optimization - PAY ATTENTION: this is "dash, capital letter O, number zero") and -g (generate debug information) flags. If these flags aren't there, add them, like in this example:
rem # Define here the compile options and the linker options for your project. rem # CPPFLAGS are compiler flags that will be applied to all source file types. rem # CFLAGS are compiler flags that will affect C and Objective-C source files, rem # whereas CXXFLAGS will affect C++ and Objective-C++ source files only. rem # If you want debug symbols to use with gdb, replace "-O2" with "-O0 -g". set IOS_CPPFLAGS=-W -Wall -Wno-unused-parameter -O0 -g set IOS_CFLAGS= set IOS_CXXFLAGS= set IOS_LDFLAGS=
Rebuild your project and you should see that a new YourAppName.DEBUG directory has been created in the project's output directory, next to your project's main executable. This is the debug database that GDB will use. Note that each time you change something in your program and recompile it, a new debug database will be created. Don't forget to transfer both of them to your device, if you copy your app manually.
Now, install your app onto your device, using either of the 4 methods described in section 4. Log in as root over SSH, and type debugapp YourAppName. The GNU debugger will load, verify that your app and its debug database match together, and wait for your app to start. As soon as you start it (by touching its icon from the SpringBoard screen), the debugger will break in, load its debug information, and wait for your orders.
iPhone-a-PM:~ root# debugapp Wolf3D ============================================================================== Please start Wolf3D manually on your device once GDB has loaded ============================================================================== Loading GDB... GNU gdb 6.3.50-20050815 (Apple version gdb-1708) (Fri Sep 16 07:00:41 UTC 2011) Copyright 2004 Free Software Foundation, Inc. GDB is free software, covered by the GNU General Public License, and you are welcome to change it and/or distribute copies of it under certain conditions. Type "show copying" to see the conditions. There is absolutely no warranty for GDB. Type "show warranty" for details. This GDB was configured as "arm-apple-darwin"...Reading symbols for shared libraries . done Waiting for process 'Wolf3D' to launch. Attaching to program: `/private/var/mobile/Applications/6E86BB25-4866-402D-9C3E-8CF7D85753F3/Wolf3D.app/Wolf3D', process 30696. Reading symbols for shared libraries + done Reading symbols for shared libraries .............................................................................. done 0x2fe6b796 in __dyld__ZN4dyldL10loadPhase5EPKcS1_RKNS_11LoadContextEPSt6vectorIS1_SaIS1_EE () (gdb)
From then on, you can place breakpoints, and start examining your program execution.
(gdb) break Level_PrecacheTextures Breakpoint 1 at 0x1ed68: file wolf\wolf_level.c, line 436. (gdb) continue Continuing. Reading symbols for shared libraries ...................... done Reading symbols for shared libraries . done Reading symbols for shared libraries .. done Reading symbols for shared libraries ... done Breakpoint 1, Level_PrecacheTextures () at wolf\wolf_level.c:436 warning: Source file is more recent than executable. 436 for (x = 0; x < 64; x++) (gdb) step Current language: auto; currently minimal 437 for (y = 0; y < 64; y++) (gdb) step 440 if (leveldata.tilemap[x][y] & WALL_TILE) (gdb) display leveldata.tilemap[x][y] 1: leveldata.tilemap[x][y] = 1 (gdb)
The GNU debugger understands many commands. If you need to learn them, there are a lot of very good tutorials on the Internet, such as this one. Look up Google for "GDB tutorial". In a nutshell, the most interesting commands are:
More information on the GNU Debugger's official project page.
As with XCode, it is possible to use any dynamic library (.dylib) from the iOS SDK with your project. Let's say you want to use the popular libXML2 dynamic library, which corresponds to the libxml2.dylib file in the usr/lib subdirectory of the SDK. To link your project against this library, open your project's make.cmd file and add the search path and the name of this library to the linker flags line (IOS_LDFLAGS) in the following way:
rem # Define here the compile options and the linker options for your project. rem # CPPFLAGS are compiler flags that will be applied to all source file types. rem # CFLAGS are compiler flags that will affect C and Objective-C source files, rem # whereas CXXFLAGS will affect C++ and Objective-C++ source files only. rem # If you want debug symbols to use with gdb, replace "-O2" with "-O0 -g". set IOS_CPPFLAGS=-W -Wall -Wno-unused-parameter -O2 set IOS_CFLAGS= set IOS_CXXFLAGS= set IOS_LDFLAGS=-L/usr/lib -lxml2
The -L***** (capital L) tells the linker to look for dylibs in this directory (from the root of the SDK), and the -l***** flag (lowercase L) tells the linker to link against a library called lib*****.dylib. As such, -L/usr/lib -lxml2 will link against the /usr/lib/libxml2.dylib file, just like -L/usr/lib -lsqlite3 will link against -L/some/funny/path -lSomeFunnyLibrary will link against /some/funny/path/libSomeFunnyLibrary.dylib file, and so on.
IMPORTANT: don't miss out that you MUSTN'T specify the "lib" prefix nor the ".dylib" suffix in the flags!
You can add as many flags as there are libraries you want to link against your project. For example:
IOS_LDFLAGS=-L/usr/lib -lxml2 -lcharset -lbz2 -lIOKit
Here your project will be linked against the libxml2.dylib, libcharset.dylib, libbz2.dylib and libIOKit.dylib, all of them from the /usr/lib subdirectory of the iOS SDK.
If you get #include or #import errors at build time while trying to include the headers of these libraries, you might need to specify the location of these header files in the make.cmd file too. For example, the libXML2 headers are not located at the root of the traditional usr/include directory of the SDK, but in a subdirectory of it. So, you need to tell the compiler to go and look for header files in that location too. This is done in the C[PP,XX]FLAGS, using the -I flag:
IOS_CPPFLAGS=-W -Wall -O2 -I"C:/Users/Pierre-Marie Baty/iOS Build Environment/SDK/usr/include/libxml2"
Apple puts some restrictions on this. The only allowed way is to embed all of the library or framework code directly within your app.
The canonical way to achieve this is to use the library or framework you want as a static library.
The other option, much simpler, is to simply include all of the framework's source files within your project, for example by putting them in a subdirectory. This way, there is no need to link against any external library. Just compile your project with the framework's source files in it, as if they were part of your projet.
Please read the "How to use an external framework.txt" help file in the ExternalFrameworkDemo project directory for further instructions.
To send your app to Cydia, it depends on which source (repository) you want to host it. For example, submissions on the BigBoss repository happen here: http://thebigboss.org/hosting-repository/submit-your-app. For the other repositories, please refer to their owner's website. I don't provide a list, as every now and then the URLs change.
In order to submit an app to the App Store, you need to send it using your App Store Connect account to the App Store Connect website. This can be done using the App Store Connect upload tool.
You need a few things to upload your app to App Store Connect. Checklist:
First, you need a build of your app signed (or re-signed) with a signing identity that's fit for App Store submissions. App Store Connect will only accept apps that are signed using a distribution certificate, so make sure your app is signed with such a certificate. In case it's not, see the signing identities section of this document to learn how to get one. Luckily for you, the App Store Connect upload tool that comes with this toolchain allows you to re-sign already packaged apps before submission.
You also need your app to embed a provisioning profile that has an explicit app ID in it. See the provisioning profiles section of this document to learn about the difference between explicit and wildcard app IDs: basically, a provisioning profile with an explicit app ID is made for one and only one app, whereas a provisioning profile with a wildcard app ID can be reused across multiple apps. Apple doesn't allow the latter for App Store submissions. So, if your current provisioning profile is a wildcard one, you will need to create an explicit app ID for your app first, then an explicit provisioning profile out of it.
You also need your provisioning profile to be fit for App Store submissions. Choose App Store (under the Distribution category) when creating such a provisioning profile.
Now, if you haven't already done so, you need to prepare a record for your app on the App Store connect website. Log in to the App Store Connect website, go to My Apps and click the plus sign to create a new record. Fill the form that describes your app: the platform on which it'll run (obviously you want iOS), the app's name, its main language, its bundle identifier (which must match the one you specified in your app's make.cmd file or in the Unity editor if your app is a Unity app), and a unique string for you to identify it easily.
If your account uses two-factor authentication, Apple will require you to set up an app-specific password to use in the upload tool in place of your App Store Connect account's main password. Click here to find out how to create an app-specific password.
When you're set, fire up the App Store Connect upload tool. Browse to the .ipa file you want to upload, specify a signing identity suitable for the App Store, fill in the fields as appropriate (your login/password or app-specific password), and hit the Upload button. A window will pop up with a progress bar during which your app will be delivered to App Store Connect.
After the upload is done, Apple will send you an e-mail at your App Store Connect account's address to tell you whether it accepted your app for delivery (w00t!) or whether there are still some problems to fix in it. Pay attention to these messages if you want to correct them quickly and efficiently. A Google search on a particular phrase usually helps in understanding what's wrong.
Once your build has been accepted by Apple, it's up to you to choose what to do with it: for example, distribute it to your beta testers through the TestFlight program, or send it to the App Store. All the rest of this process now takes place on the App Store Connect website, which you will soon be accustomed to use. :-)
iOS apps require to be signed with a signing identity in order to be deployed on non-jailbroken (stock) devices, and/or submitted to App Store Connect and the App Store.
A "signing identity" is the association of a certificate approven by Apple and a private key, that is used to seal that certificate into the app, AND a provisioning profile that tell which devices (typically yours and your testers') are allowed to install your apps.
3 cases:
In order to sign your app with a signing identity, put these certificate(s) (.cer files), private key (.key file) and provisioning profile(s) (.mobileprovision files) in the Keychain directory where the iOS Project Builder for Unity is installed. The build tools will then be able to pick them up and let you select which identity to use.
All iOS signing identities found on your Mac are automatically migrated along with the iOS SDK by the Migration Assistant when you run it. If you want to grab a signing identity from your Mac that was created after the iOS SDK was migrated, simply run the Migration Assistant again.
First, you need to enroll in the iOS Developer Program: https://developer.apple.com/programs/ios/ (if you wonder whether you can use a free Xcode certificate, read about it a few paragraphs below).
Now, you need to generate a new signing identity. Use the iOS Project Builder for Unity's Keychain tool to generate a new private key, and a certificate signing request (CSR). Your private key will be automatically installed in the Keychain directory, and you get a .certSigningRequest file that you can save somewhere on your disk.
Now visit the iOS Developer Portal at https://developer.apple.com/account/, login with your Apple iOS developer ID, click on Certificates, Identifiers & Profiles in the menu and create the certificates you need using your .certSigningRequest file ('+' button). Once the Apple website created your certificate, download it and save it in the Keychain directory, alongside with your private key.
Finally, you need a provisioning profile, to tell iOS which devices are allowed to install your apps. Read on the next section to find out how to create that.
Once you have your private key and certificate installed in the Keychain directory, they become usable by the builder. Please refer to your iOS app project's make.cmd file and follow the instructions in it so that your digital identity is embedded in your app at build time, or use the Keychain Tool to specify a default signing identity. Please note that only valid, non-expired certificates will appear in the certificates list.
You may then deploy your signed apps to all the devices that are listed in the app's provisioning profile (see 13) with the generated .ipa, automatically after each build (OTA), or manually (see 4.)
It is not strictly necessary to enroll in the iOS Developer Program, but in my opinion the benefits exceed the expense. Simply put, if you don't, you will need to use those "free" code signing certificates generated by Xcode, and since these certificates have a very limited lifetime (10 days) by Apple's design, be prepared to migrate them each and every week from your Mac and rebuild the apps that use them to make them installable again. Not only that, but by Apple's design, over-the-air deployment can't be used with those free certificates, which means you'll need to deploy your apps by hand on your devices (using iTunes sync for example), and when you do this 20 times a day or more, that's a consequent waste of time. A lot of advanced features related to signing identities, application entitlements, device provisioning, are not available to free users (or seriously hindered), which mean you won't be able to test many things that you code. That's why my advice is to bite the bullet and go the official way, unless you're really budget-constrained - and be prepared for a lot of hassle if you choose to go the narrow way.
Provisioning profiles are authorization files that, when installed on an iOS device, tells iOS which apps it is allowed to let you install. When you install a custom app on your iOS device, iOS complies to the provisioning profiles it has to decide whether it lets the app in or throws it away. App Store apps are not concerned, because they are all re-signed by Apple as part of the app submission process (this is why App Store apps are always accepted by iOS.)
If you want to deploy your own signed apps on an iOS device, you need a provisioning profile for it.
Sure. Just make sure that the App ID you specify in your project matches the App ID in the provisioning profile.
If it's a "wildcard" provisioning profile, you're good. Else, if it's an "explicit" one, the IDs must match exactly. To find out the difference between a "wildcard" app ID and an "explicit" app ID, see this page.
In all cases, if you have the slightest doubt, the safest way is certainly to obtain a new provisioning profile from the iOS Provisioning Portal.
Provisioning profiles instruct iOS to let you install apps signed by yourself. Here is how to create one.
First, create an app ID:
Certificates, Identifiers & Profiles.App IDs.+ button (top right) to create a new app ID.All apps created by me" (word it as you wish).Wildcard App ID checkbox and enter com.yourdomain.* in the bundle ID field (replace com.yourdomain by your company's or your own top level Internet domain in reverse order, such as net.whizzbanggames for example) — and don't miss out the trailing .*MyCoolApp) in the bundle ID field.Continue, review your choices, and click Submit.Now, let's instruct which device(s) this provisioning profile will concern:
All.+ button (top right) to register a new iOS device.My iPad") and its Unique Device Identifier (UDID). To display the UDID of a device:Continue, review your choices, and click Register. Redo these steps for each iOS device you have.Finally, create a provisioning profile for this app ID and the device(s) you just registered:
All.+ button (top right) to create a new provisioning profile.Continue, select the app ID you just created in the list, and click Continue.Continue.Generic provisioning profile" if you used a wildcard app ID, or "Provisioning profile for MyCoolApp" if you used an explicit one), and click Generate.Your provisioning profile is ready. You may download and save it in the Keychain directory, alongside with your private key.
And now that you have a private key, a signing certificate and a provisioning profile with your app and device IDs in it, your signing identity is usable and you're good to go.
If you want to enable your app to access special iOS services (such as Apple Pay, iCloud, etc) it must fullfill two conditions:
.plist fileEnabling these services is done when you register your app ID on the iOS Developer portal here: https://developer.apple.com/account/ios/identifier/bundle/
When you create an app ID, either generic (wildcard ID) or specific (explicit ID), you are allowed to choose which extra Application Services will be accessible to an app wearing this ID. Technically speaking, these services are called an app's entitlements.
Configuring these services now is done through an external .plist file, a text-editable ASCII property list that will contain the app-specific entitlements data, that will be hard-stamped in the app binary at signing time. In a nutshell, this is a text file you create with the .plist extension, and in which you put a dictionary of key/values like this:
<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>com.apple.developer.associated-domains</key> <array> <string>applinks:some-machine.somedomain.com</string> <string>applinks:other-machine.somedomain.com</string> </array> </dict> </plist>
In this example, the Associated Domains app service is set to trust the some-machine.somedomain.com and other-machine.somedomain.com hosts. The key to use for this service is com.apple.developer.associated-domains.
Then, in your project's make.cmd file, simply assign the variable called ENTITLEMENTS the pathname to your entitlements .plist file, so as to tell the builder to stamp these entitlements in your app at code signing time (if the variable is :commented_out, remove the leading colon to enable it). Like this:
rem # If you need to stamp special entitlements into your app (or in Apple words, rem # configure some special "Application Services"), you can do so here by using rem # a .plist file that will contain the entitlements key/values pairs to seal rem # into your app. Note that the corresponding services must have been turned rem # on when you created your App ID online in the iOS Developer Portal. set ENTITLEMENTS=C:\Users\Pierre-Marie Baty\Documents\iOS Projects\MyCoolApp\MyCoolApp-entitlements.plist
When you need to configure a particular service and you don't know which entitlement key(s) it uses, a good starting point is to read this page in the Apple online documentation to learn which key names are associated with a particular service. Then use Google to find out about its possible values.
A "pre-packaging script" is an executable file that you specify (either .bat, .cmd, or even .exe, or any extension for which you have an interpreter: .js for Javascript, .py for Python, etc. as long as the corresponding interpreter is installed), that the builder will run just before your app is signed and packaged. You can use this extra build step to arrange custom resource files in the app's directory, move some from here to there, include some others, exclude other ones, and even generate new ones on the fly.
Your app's file layout, i.e. the directory in which you're interested to make changes, is typically the build\Release-iphoneos\iPhone-target\YourAppName.app directory that is created in your project directory by the builder (Release-iphoneos being the Xcode project's configuration name and the SDK's target system, and iPhone-target being the Xcode project's target name which in Apple's terminology is equivalent to a Visual Studio's project name). Anyway, this is the directory whose contents will be signed and packaged in the final .ipa file, that will be deployed to your iDevice. To find out which change(s) are needed, you must know which file(s) your app needs and where it expects to find them.
If you want to use a pre-packaging script for your app, create a script that will make the necessary changes to this directory, and specify it in the PREPKGSCRIPT variable in your make.cmd file, like this:
rem # If you need to use a pre-packaging script (that is to say, a custom script rem # that the build system should execute after the app is built and before it rem # is sealed with a code signature), you can define it here. Such a script can rem # be used to perform better resource placement within the app directory. rem # Enter here the path, file name and optional arguments of your script, as it rem # should be invoked by the command processor. set PREPKGSCRIPT=C:\Users\Pierre-Marie Baty\Documents\iOS Projects\MyCoolApp\MyCoolApp-prepkg.bat
Note: you can also use a relative path to the script to call here, in which case the path is relative to your project's root directory.
Unity apps that don't use make.cmd files may instruct the builder to call a pre-packaging script by checking the corresponding checkbox in the builder's interface.
Here's an example of a fictious pre-packaging script, called MyCoolApp-prepkg.bat:
@echo off rem // hint: there are a few environment variables that you can use in your script. For example: rem // %NAME% - will expand to your app's main binary name, e.g. "MyCoolApp" rem // %CONFIGURATION% - will expand to the Xcode project configuration, e.g. "Release" rem // %TARGET_BUILD_DIR% - path where the app was constructed, e.g. "build\Release-iphoneos\iPhone-target" rem // see if we're calling this for the right app if not exist "%TARGET_BUILD_DIR%\MyCoolApp.app\." ( echo Looks like you're not calling this script for the right project... ^(exiting with an error code^) exit /b 1 ) rem // copy the missing .png files that my app expects to find in 'ExtraResources' mkdir "%TARGET_BUILD_DIR%\MyCoolApp.app\ExtraResources" copy /b /y C:\Users\Me\DevelopmentPictures\*.png "%TARGET_BUILD_DIR%\MyCoolApp.app\ExtraResources" rem // remove a big duplicate file that was incorrectly bundled in two places del /y "%TARGET_BUILD_DIR%\MyCoolApp.app\BigFatDataBase.sqlite"
Yes you can!
The witchcraft to use lies in the build.cmd file that's in the main directory where the iOS Project Builder was installed. Basically, you call it with the path to an Xcode project generated by Unity, your signer identity string, and a couple of options to tell whether you want it to produce an .ipa file, a .deb file, or both, and whether you want to deploy the app to your device directly.
Invoke it with build.cmd /? to see the full list of command-line options, and to learn more about what is a signer identity string in the context of this builder. An example could look like this:
"%IOSBUILDENV_PATH%\build.cmd" "C:\Users\Pierre-Marie Baty\Desktop\AngryBots" -identity "my_certificate.cer:private_key.key:MySecretPassPhrase" -provision "C:\path\to\provisioning-profile.mobileprovision" -ipa
This command line builds the AngryBots Unity project that's sitting on my desktop and outputs a signed .ipa file. Ain't it cute?
Extra magic: in the Xcode project builder UI, if you hit the Build button while holding the Shift key pressed, the build log will output a lot of debug info. The first line will be the full invokation of build.cmd, that you can copy/paste and use in your own continuous integration tools!
Building from the command line is specially useful if you want to integrate this builder into your own custom build chain. If you are a professional developer, it will make your testers save an insane amount of time!
Uploading (with or without resigning) an .ipa file to App Store Connect is also possible from the command line. See upload.cmd /? for the gory details. Here's an example:
"%IOSBUILDENV_PATH%\upload.cmd" "C:\Users\Pierre-Marie Baty\Desktop\AngryBots\Packages\AngryBots.ipa" -identity "my_certificate.cer:private_key.key:MySecretPassPhrase" -provision "C:\path\to\provisioning-profile.mobileprovision" -asclogin "your@email" -ascpassword "AppStoreSecretPassword"
This command line re-signs then uploads the AngryBots.ipa file to App Store Connect.
Yes.
This is normally automatic if those embedded binaries or frameworks are defined as such in your Unity-generated Xcode project file. The builder should simply detect them, and do the job appropriately.
In the case where it wouldn't be the case (you can tell so if you examine the contents of your MyAppName.app directory after a successful build, and check whether your embedded binaries are there or not in the Libraries or Frameworks subdirectories), you may try to force-embed them by specifying them explicitly on the command line in a command-line build.
"%IOSBUILDENV_PATH%\build.cmd" "C:\Users\Pierre-Marie Baty\Desktop\AngryBots" [...build options...] -embed "relative/path/to/SomeLibrary.dylib relative/path/to/SomeOtherFramework.framework" [...other build options...]
Please note: specifying the embedded binaries on the command-line will add them to the list of embedded binaries that the builder found in the Xcode project. It will not supercede them! So, if there's an error in your Xcode project file, it's wiser to fix it so that your extra binaries are embedded automatically instead of relying on a command-line build to do the job.
Yes. At last.
It took me ages, but I finally managed to make this horrific bloat that's impersonating itself as a dependency manager to work on Windows. Since the NTFS filesystem used by Windows had limitations that were definitely incompatible with the way CocoaPods works, a quasi Darwin-compatible lightweight BSD UNIX subsystem had to be created to host the CocoaPods client. This subsystem comes pre-installed with the toolchain, but not activated. If you want to use it, you'll need to acquire an activation key: simply follow the instructions when you start it the first time.
To use it, cd to the directory where your Podfile is, and prefix your pod command by the pathname of the CocoaPods daemon control script, like this:
"%IOSUNITYBUILDER_PATH%\Toolchain\cocoapods\cocoapods.cmd" pod install
All the pod commands are supported (see the full list), and also Ruby gem commands (such as gem update cocoapods) to update or fix CocoaPods itself. Note that when the build script finds a Podfile in your project and the CocoaPods daemon is usable, it automatically calls it to set up your project dependencies, which means you should rarely ever need to issue a pod command yourself.
Since this subsystem is implemented as a daemon, it must be started first, which can take some time at the first call (around one minute, the time it takes for booting an operating system), after what it stays resident in memory until you decide to stop it. Be prepared that CocoaPods will initialize itself by downloading a mind-boggling 1.5 gigabyte of data off GitHub to your computer to construct its database of all the available Pods. Of which only a ridiculous kilobyte is actually pertaining to your application — I leave the computation of the bloat factor of this ubiquitous software as an exercice to the astute reader.
Note that during that initial setup phase, you need a good and steady Internet downlink, else CocoaPods will likely issue this error: [!] Unable to add a source with url `https://github.com/CocoaPods/Specs.git` named `cocoapods`. You can try adding it manually in `/Users/cocoapods/.cocoapods/repos` or via `pod repo add`. It simply means your connection to GitHub was interrupted, and CocoaPods isn't smart enough to recover from where it stopped.
Why make this an optional add-on? Because even if I spent an insane amount of time (i.e. months) figuring out a way to make it work, not all of those who build iOS or macOS apps on Windows also need CocoaPods to work on Windows, and trying to recover the development cost by raising the whole toolchain's would have turned out unfair for many. The legacy workarounds still work (e.g. downloading and laying out your project's dependencies by hand, although more fastidious), so this add-on is strictly optional.
cartool) is able to compile app icons, splash screens, launch images, AR reference groups, AR reference images, AR objects, color sets, data sets, image sets and store artwork, but not other resources (yet). To have them supported in the next release, please send me the .xcassets directory that doesn't build, so that I can provide you a patch quickly. In the meantime, assuming that your assets don't change across builds, and if you have a working macOS at hand or can borrow one, you can build your project on macOS once, then extract the compiled Assets.car file from the .ipa archive (.xcassets directories are compiled into an Assets.car file), then use it as a resource file when building your project on Windows, by inserting this Assets.car file into the final app using a pre-packaging script (see the section about pre-packaging scripts)..xib files (some assets embed Xcode plugins that do). Assuming that your .xib file doesn't change across builds, the workaround, if you have a working macOS at hand or can borrow one, is to build your project on macOS once, then extract the compiled .nib file from the .ipa archive (.xib files are compiled into .nib files), then use it as a resource file when building your project on Windows, by inserting this .nib file into the final app using a pre-packaging script (see the section about pre-packaging scripts). You will also need to remove all references to the .xib file from the project.pbxproj file to make the builder happy. If the previous tip isn't appliable to you, you will need to rewrite the concerned assets so that they do in plain Objective-C code what they were doing in Interface Builder, or if you can't, simply not use them for now.\\SERVER\share\project). To workaround this limitation, just mount your network path as a network drive, and access it using the drive letter instead of the network path.If you still get the nag popup in your app even after registration:
If your app fails to build:
Make sure you're using the latest version of the builder, and update if necessary. While doing this, it is advisable to keep a backup copy of your current installer for reference.
The next thing to do is to have a readable builder log. As most build errors are consequences of earlier errors, you need to ensure the build will process only one file at a time, and immediately stop at the first error : it is that one you need to fix first.
The second thing to do is to make sure you're not trying to compile a project that requires a version of the iOS SDK that's higher than the one you have migrated. If in doubt, update your iOS SDK to the latest one by first updating Xcode on Mac, then using the Migration Assistant again to transfer the iOS SDK from Mac to Windows. Also, avoid using "beta" versions of the iOS SDK unless you really have to: they might be less well digested by this toolchain.
Podfile. This will enable you to create the Xcode project anyway, without the Pods directory (and thumb down Google).Podfile), download these missing frameworks/libraries/bundles from their website (almost all of them provide a non-CocoaPods means of distribution in the form of a zip archive or similar), and inject them at build time using the "Add extra framework" and "Add binary" buttons. After that, move the Podfile away (e.g. rename it) so that the build is allowed to continue.-ObjC to the extra linker flags.GoogleMobileAds.framework. This framework depends on other Firebase components: UserMessagingPlatform, GoogleAppMeasurement, GoogleUtilities, PromisesObjC, nanopb, so inject those as well and add -ObjC to the extra linker flags.PodSpec on their GitHub repository; until it changes, the download is here. Then inject the frameworks normally. Also add -ObjC in the extra linker flags (NOTE: there is controversy about this ad mediation service. I found it out after discovering that my malware filters block their domains. I am not advocating them here, I'm simply answering a recurrent user request. Please make your own mind.)-multicore option is not in use. This will greatly help diagnosis, because the builder will now process one file at a time, and stop at the first error.-I<relative_path_to_the_file>, for example: -ISomeDir/SomeOtherDir/DirWhereMyHeaderIs. You probably will have to do that again for other files (maybe a lot, if you use a lot of plugins). Append all compiler flags with a space between each of them, like this: -Ipath1 -Ipath2 -Ipath3.make.cmd file, make sure the call to build.cmd doesn't include the -multicore argument; if it does, temporarily chop it off. This will greatly help diagnosis, because the builder will now process one file at a time, and stop at the first error.make.cmd file is incorrect. Make sure that the compiler and linker options that you specified in the project's make.cmd file don't compromise the build. For example, if your code requires third-party libraries or frameworks, make sure the LDFLAGS include them correctly. Also make sure the target iOS version that you chose is not too old for the frameworks or libraries that your app requires (for example, the Social framework requires iOS 6+). The fact that such a project builds with Xcode can be misleading here, because Xcode doesn't warn you when there is an inconsistency between the targeted iOS version and the frameworks on which it relies."New folder (2)". Simply rename your project's directory to something safe (use only alphanumeric characters and spaces) and see if it makes the problem disappear.ccache: error: Failed to create temporary file for [very long path], then you're likely to have been plagued by the Windows 260 characters path limit. Try relocating your project closer to the root of your drive (e.g. if your project is located at C:\Users\YourName\Documents\Projects\Stuff\Miscellaneous\2020\RandomIdeas\ThingsThatWork\MyCoolProject, simply move that directory to C:\MyCoolProject. Most of the times it's enough to stay under the path limit.If your app fails to install (you can tell it's so if the app icon isn't rendered correctly):
AppSync package is installed. Don't miss out AppSync to install unsigned IPAs! On the other hand, .deb packages don't require AppSync.Info.plist. Double-check its syntax, and make sure the CFBundleExecutable key value points to your app's executable./private/var) mount point). If you install things to the system partition, you may fill it to the brim very easily!cydia-package.cfg file (if present) in your project directory for possible inconsistencies.If your app installs successfully, but fails to start:
make.cmd file.root on your device using SSH and fix it using the chmod +x /path/to/YourAppBinary Unix command.If your app fails to send anything to the remote debug console:
stdout (standard output) and stderr (standard error) streams.If your app starts, but the ARKit features don't work:
xcrun (an Xcode tool) was not found. This is necessary to bake ARKit-specific data into an XRReferenceImageLibrary. XRReferenceImageLibrary assets will not work in asset bundles. If you do, it means the Unity Editor expected to find a macOS-specific tool called xcrun (which obviously doesn't exist on Windows) to copy your AR reference images at their right place in the Xcode project. Relying on this tool should not be necessary as there are more portable ways to do the same thing. Until Unity fixes this issue in a more portable manner, you may use this workaround suggested by a user. The idea is to load your AR reference images by hand when they're needed, programmatically.If your app crashes:
unrecognized selector sent to instance or unrecognized selector sent to class and your app uses static libraries or frameworks (static libraries are pre-compiled files ending in .a and static frameworks are all those third-party frameworks that are merged in your app's main binary and don't go in a Frameworks subdirectory of your app), and these static libraries or frameworks contain Objective-C classes, then the linker may have stripped too much of them. Because Objective-C calls work by character strings and not function addresses like everybody else (for the curious, see how objc_msgSend() works), it's hard for the linker to know whether your code will be using a particular Objective-C function or not, so when this function is inside a library, by default it assumes it won't... and is often wrong. So, to prevent the linker from stripping "seemingly unused" Objective-C code found in your static libraries and frameworks, add -ObjC to the extra linker flags and rebuild your app. Note that this is often an explicit direction given by third-party framework providers (for example, Google does tell you to add the -ObjC linker flag to Xcode when you use Firebase or AdMob, unless you're using CocoaPods, which does it automatically). Note that this necessarily will make your app bigger, so if you want to restrict this linker behaviour to a particular library or framework, consider using the -force_load path/to/library flag instead.If your app works, but fails to upload to App Store Connect (formerly iTunes Connect):
", \, ! or ^). If needed, update your App Store Connect password on the Apple website.
